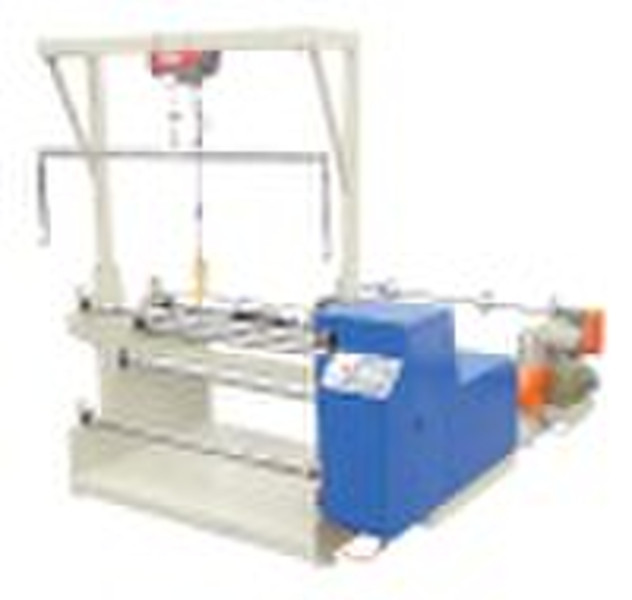

SZ-1600 roll slitting rewinding machine

roll slitting rewinding machine jumbo roll slitter rewinder USE: It is suitable for all kind of Kraft-paper,Grass board-paper,Printing paper and Art-paper cutting. FEATURE: 1.two blades cutting;thicken blade 2.the two side of the paper will be smooth after the cutting,without any burring. 3.tray paper will be tidy with two sides feat. 4.with the computer rectified system and it can rectified automatically. 5.all the operation will be finished on the panel with ease operation 6.with high capacity,the single machine can be provided for three sets of reel-pipe machine 7.S.S structure body;beautiful performance 8.pneumatic discharge with easy operation 9.double magnetic powder brake control,and with equally tension SZ– 1600 paper slitter and rewinder/Main specification and equipmentTechnical parameterControl systemJumbo roll max-width1600 mmTouch screenMcgs Tpc 7062Jumbo roll min-width25 mmPLC controllerAirtacJumbo roll max-diameter1300 mmtransducerMitsu 7.5 KWRewinding roll max-diameter800 mmProgram vesion NO.SZ-1.6Slitting range20g-900gElectrical partSchneiderSlitting speed0-300m/minSignal partOmronLoad paper-rollMotor-drivenPneumatic elementAirtacUnload wayElectric blockInput powerAc 380VRewinding wayInflatable adductorDrive systemMain motor7.5 kwMain motor7.5KWAuxiliary power2.2 kwMoving speed0—1450r/minBlade quantity21 pairsSpeed controlTransducerBlade quantity105*70*4(thicken)Loading paper power2.2KWMainframe size(mm)Correction motorY110 60:1Unwind part: L*W*HWinding reducerWinding reducerWpA 120Rewind part: L*W*HLoading paper reducerLoading paper reducerWpA 100Whole machine sizeDriving wayDriving wayBy chainWhole machine weigtTapered chuckTapered chuck3 inchEquipped devicesBearingLuo axis(LYC / LK)Load paper-rollElectrodynamicAccessoriesUnload wayElectrodynamicUseful toolA setAuto edge correctionElctric screw correct devicevalvePressure gunCount metersAuto counterwrenchHex wrenchTension correctionPressure regulationOne instruction manual
