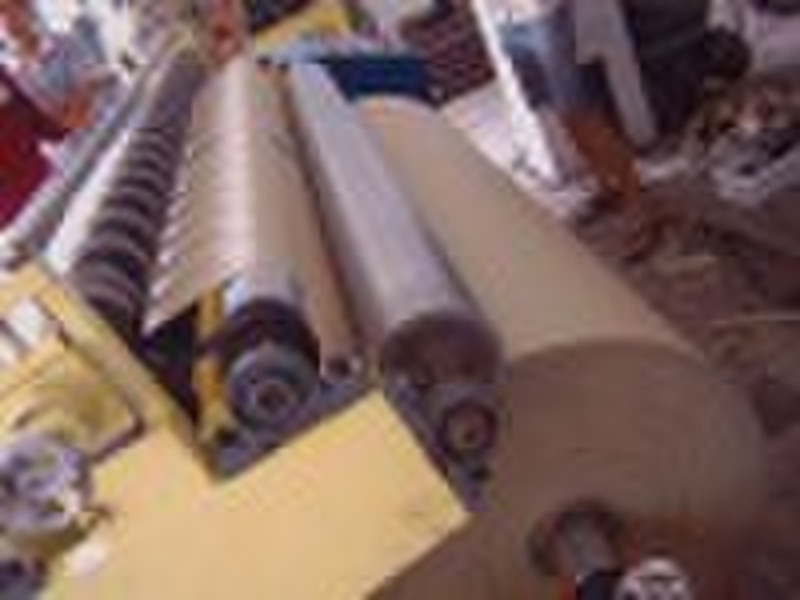

DZ-1600 roll slitting rewinding machine

roll slitting rewinding machine jumbo roll slitter rewinder USE: It is suitable for all kind of Kraft-paper,Grass board-paper,Printing paper and Art-paper cutting. FEATURE: 1.two blades cutting;thicken blade 2.the two side of the paper will be smooth after the cutting,without any burring. 3.tray paper will be tidy with two sides feat. 4.with the computer rectified system and it can rectified automatically. 5.all the operation will be finished on the panel with ease operation 6.with high capacity,the single machine can be provided for three sets of reel-pipe machine 7.S.S structure body;beautiful performance 8.pneumatic discharge with easy operation 9.double magnetic powder brake control,and with equally tension Dz– 1600 paper slitter and rewinder/Main specification and equipmentTechnical parameterDrive systemJumbo roll max-width1600 mmMain motor4.0KWJumbo roll min-width30 mmMoving speed0—1450r/minJumbo roll max-diameter1300 mmSpeed controlElectromagnetismRewinding roll max-diameter1000 mmLoading paper power2.2KWSlitting range35g-600gCorrection motorY110 60:1Slitting speed200 m/minWinding reducerWpA 120Load paper-roll wayMotor-drivenLoading paper reducerWpA 100Rewinding wayInflatable adductorDriving wayCoupling shaftMain motor4.0 kwTapered chuck3 inchAuxiliary power2.2 kwBearingLuo axis(LYC / LK)Blade quantity21 pairsEquipped devicesUp-blade specification105*70*4(thicken)Load paper-rollMotor-drivenLow-blade specification105*70*4(thicken)Unload wayPneumaticMainframe size(mm)Auto edge correctionElctric screw correct deviceUnwind part: L*W*H1500*2350*1200 mmCount metersAuto counterRewind part: L*W*H1350*2800*1500 mmCounter typeN 6509Whole machine size2850×2800×1500Tension correctionPressure regulationWhole machine weigt2500 kgBrakeDouble steam brake adjustmentControl systemAccessoriesPower supplyAC 380VUseful toolA setElectrical productCHINTvalvePressure gunSignal partSHHGwrenchHex wrenchPneumatic productAirtacOne instruction manual
